Blastking PROFILE10N 10 Inch High-Performance Neodymium Woofer 8 Ohm 900W Program

Sold Individually

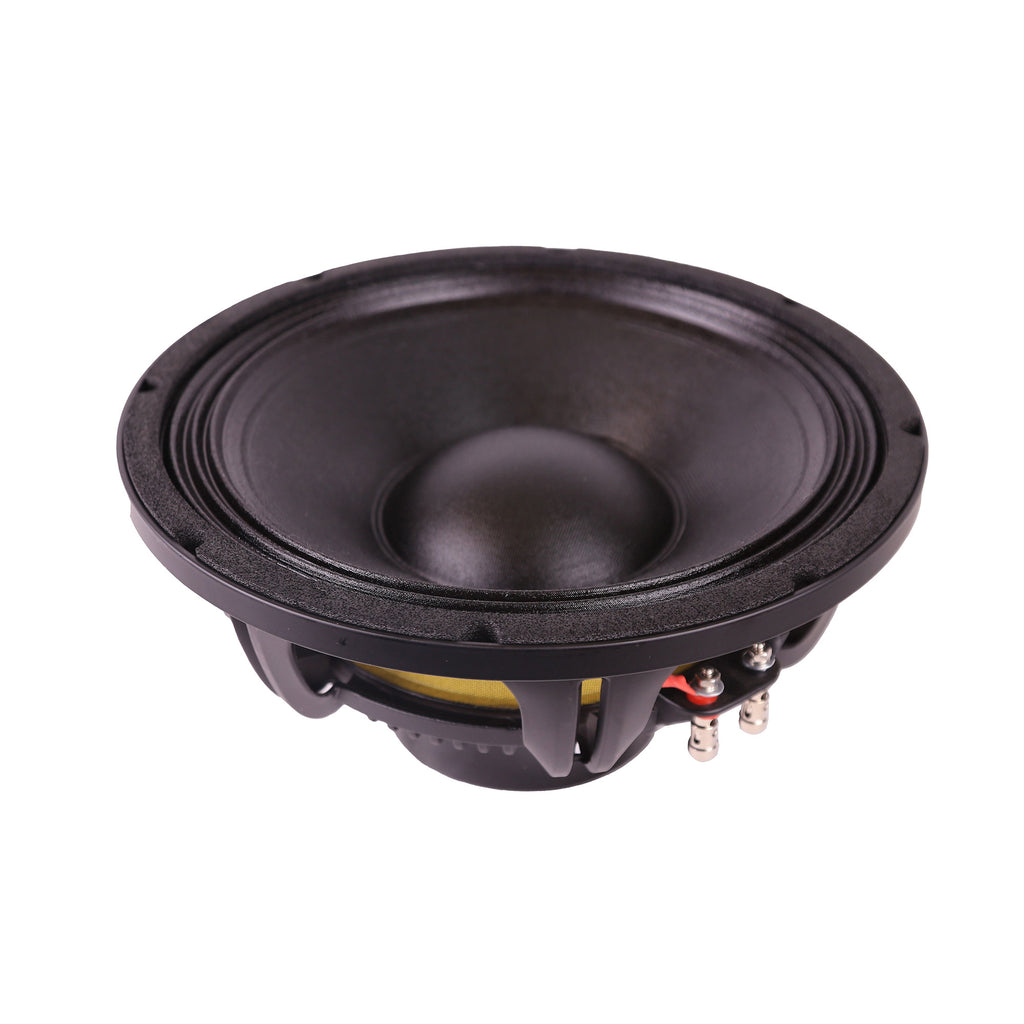

The Blastking PROFILE10N is a 10 inch high-performance  neodymium woofer designed for low-frequency professional audio applications. It features 8 ohm impedance, 450 watts rated power handling, 900 watts program power, and 98 dB sensitivity, delivering strong output in a lightweight woofer design.

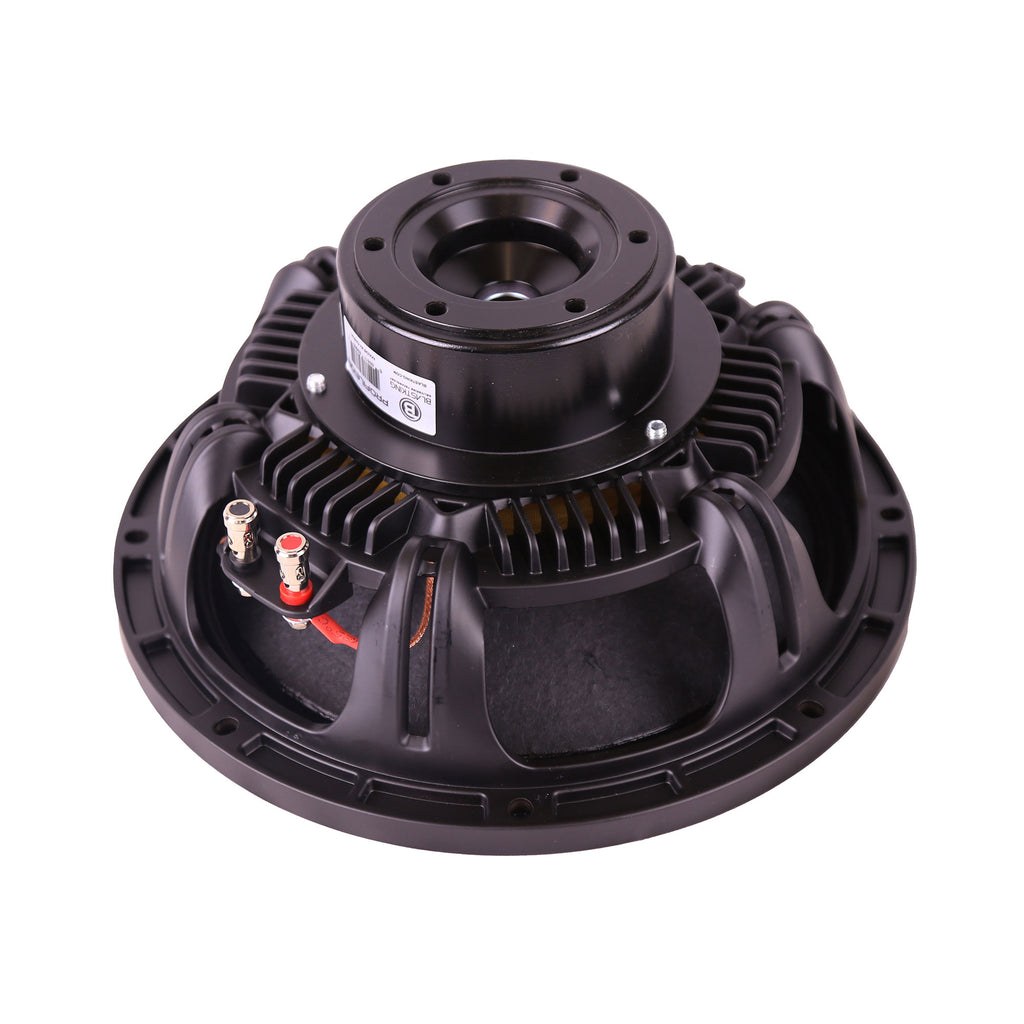

Built with a 3 inch fiberglass voice coil and a lightweight neodymium magnet, the PROFILE10N is specified for a frequency range of 56 Hz to 3000 Hz. Its 250 mm nominal basket diameter, 230 mm cut-out, and 125 mm depth make it a practical option for professional speaker builds and replacement applications where low weight and dependable low-frequency performance matter.

Features

• 10 inch high-performance neodymium woofer

• Lightweight neodymium magnet

• 8 ohm impedance

• 450W rated power handling

• 900W program power

• 98 dB sensitivity

• 3 inch fiberglass voice coil

• Frequency range: 56 Hz to 3000 Hz

• Low-frequency woofer design

• PROFILE N-SERIES

Specs

• Model: PROFILE10N


• Description: High-Performance Neodymium Woofer

• Nominal Basket Diameter: 250 mm / 10 inch

• Rated Impedance: 8 ohm

• Rated Power Handling: 450 Watts

• Program Power: 900 Watts

• Sensitivity: 98 dB

• Frequency Range: 56 Hz - 3000 Hz

• Magnet: 310.8 g / 10.96 oz

• Magnet Dimensions: 74 x 15 x 10 mm / 2.9 x 0.6 x 0.4 inch

• Minimum Impedance: 5.1 ohm

• Voice Coil Diameter: 75 mm / 3 inch

• Voice Coil Material: Fiberglass

• Voice Coil Length: 16 mm / 0.6 inch

• Number of Layers: 2

• Kind of Layers: inside/outside

• Top Plate Thickness: 10 mm / 0.4 inch

• Resonance Frequency (Fs): 56 Hz

• DC Resistance (Re): 5.1 ohm

• Mechanical Factor (Qms): 9.6

• Electrical Factor (Qes): 0.23

• Total Factor (Qts): 0.23

• BL Factor (BL): 18.5 T-m

• Effective Moving Mass (Mms): 45.8 gr

• Equivalent Cas Air Load (Vas): 25.1 liters

• Effective Piston Area (Sd): 3.200E-M²

• Maximum Linear Excursion (Xmax): 5.5 mm

• Overall Diameter: 260 mm / 10.24 inch

• Bolt Circle Diameter: 245 mm / 9.65 inch

• Bolt Hole Diameter: 6.5 mm / 0.26 inch

• Front Mount Baffle Cut-Out: 230 mm / 9.06 inch

• Rear Mount Baffle Cut-Out: 230 mm / 9.06 inch

• Depth: 125 mm / 4.92 inch

• Net Weight: 2.9 kg / 6.3 lbs

• Shipping Weight: 3.7 kg / 8.16 lbs

• Dimensions (W x D x H): 265 x 265 x 138 mm / 10.4 x 10.4 x 5.4 inch

View PROFILE10N Datasheet
