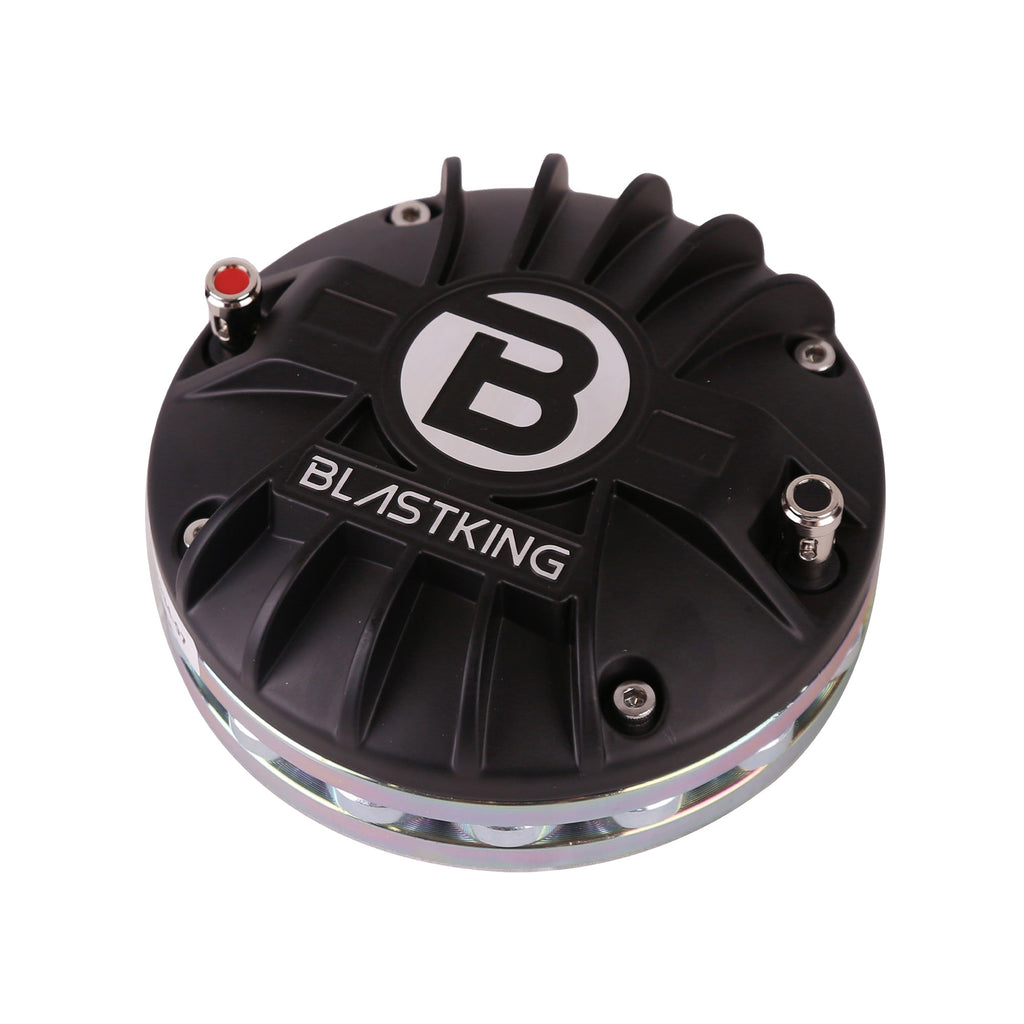

The Blastking PROFILE-TW375N is a 3 inch neodymium compression driver designed for professional high-frequency audio applications. It features a 1.4 inch throat diameter, 8 ohm impedance, 100 watts RMS power handling, 200 watts program power, and 106 dB sensitivity (1W/1M) for efficient output in professional speaker systems.
Built with a 75 mm (2.95 inch) voice coil, PEN diaphragm, copper-clad aluminum flat wire, KAPTON voice former, and aluminum body construction, the PROFILE-TW375N is specified for a frequency response of 500 Hz to 16 kHz. It also includes push button spring terminals and mounts with 4 x M6 threaded holes on a 102 mm mounting PCD, providing practical installation details for professional audio applications.
Features
-
3 inch neodymium compression driver
-
1.4 inch throat diameter
-
8 ohm impedance
-
100W RMS power handling
-
200W program power
-
106 dB sensitivity (1W/1M)
-
75 mm (2.95 inch) voice coil
-
PEN diaphragm
-
Copper-clad aluminum flat wire
-
KAPTON voice former
-
Aluminum body construction
-
Push button spring terminals
Specs
-
Model: PROFILE-TW375N
-
Description: 3 inch neodymium compression driver
-
Throat Diameter: 35.56 mm / 1.4 inch
-
Rated Impedance: 8 ohm
-
Rated Power Handling: 100 Watts
-
Program Power: 200 Watts
-
Sensitivity: 106 dB (1W/1M)
-
Frequency Range / Response: 500 Hz - 16000 Hz / 500 Hz - 16 kHz
-
Magnet: 227.2 g / 8.01 oz
-
Magnet Dimensions: 20 x 6 mm / 0.8 x 0.2 inch (16 pcs)
-
Minimum Impedance: 6.4 ohm
-
Voice Coil Diameter: 75 mm / 2.95 inch
-
Voice Coil Material: Copper-Clad Aluminum Flat Wire
-
Voice Coil Winding Depth: 3 mm / 0.1 inch
-
Voice Former Material: KAPTON
-
Diaphragm Material: PEN
-
Frame Material: Aluminum
-
Connector Type: Push Button Spring Terminals
-
Fitting: 4 x M6 threaded holes
-
Mounting PCD: 102 mm
-
Net Weight: 1.7 kg / 3.75 lbs
-
Shipping Weight: 1.8 kg / 3.97 lbs
-
Dimensions (W x D x H): 130 x 130 x 68 mm / 5.1 x 5.1 x 2.7 inch
View PROFILE-TW375N Datasheet
