Description
Jam-packed with innovation and a fresh modern design, the Blastking NOVO-P15A is a professional 15-inch 2-way active loudspeaker combining powerful Class-D bi-amplification, integrated DSP processing, Bluetooth® connectivity, and TWS (True Wireless Stereo) in a versatile portable enclosure.
The NOVO-P15A delivers 1200 watts of Class-D amplification with a 15-inch low-frequency transducer with 3-inch voice coil and a 1.75-inch high-frequency transducer. With a frequency response of 50 Hz – 20 kHz and maximum SPL of 134 dB, it is designed for professional PA, live sound, mobile applications, and stage monitoring.

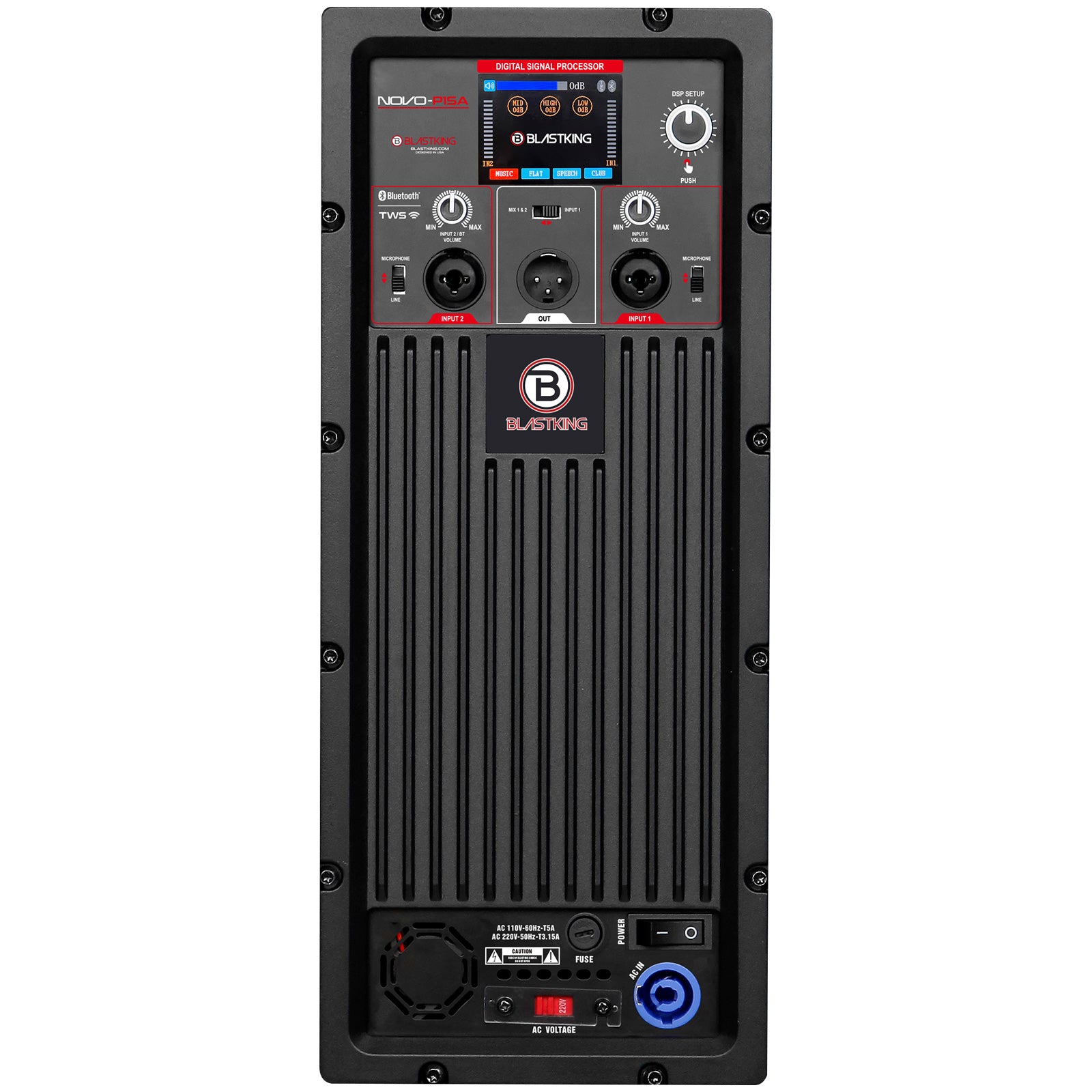

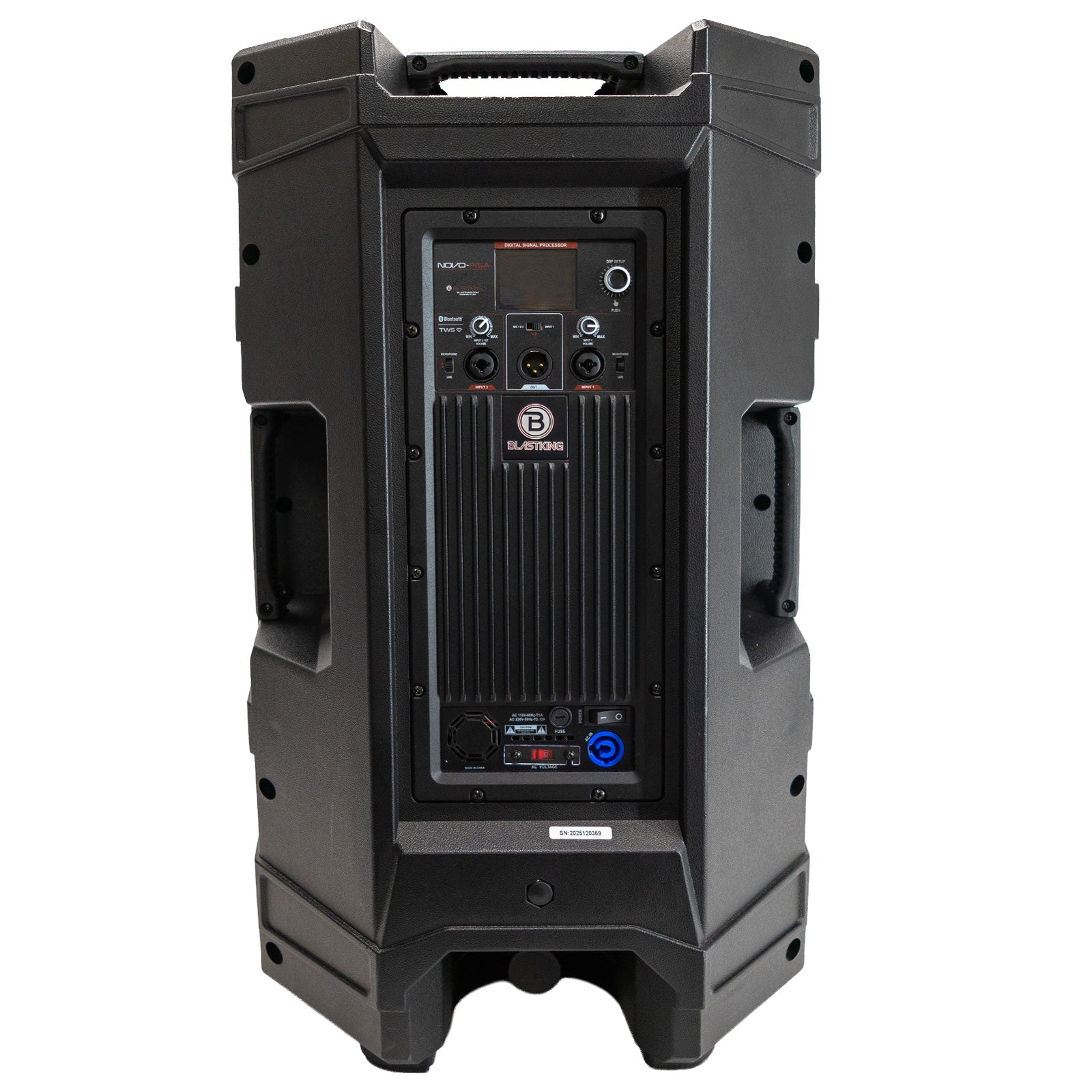

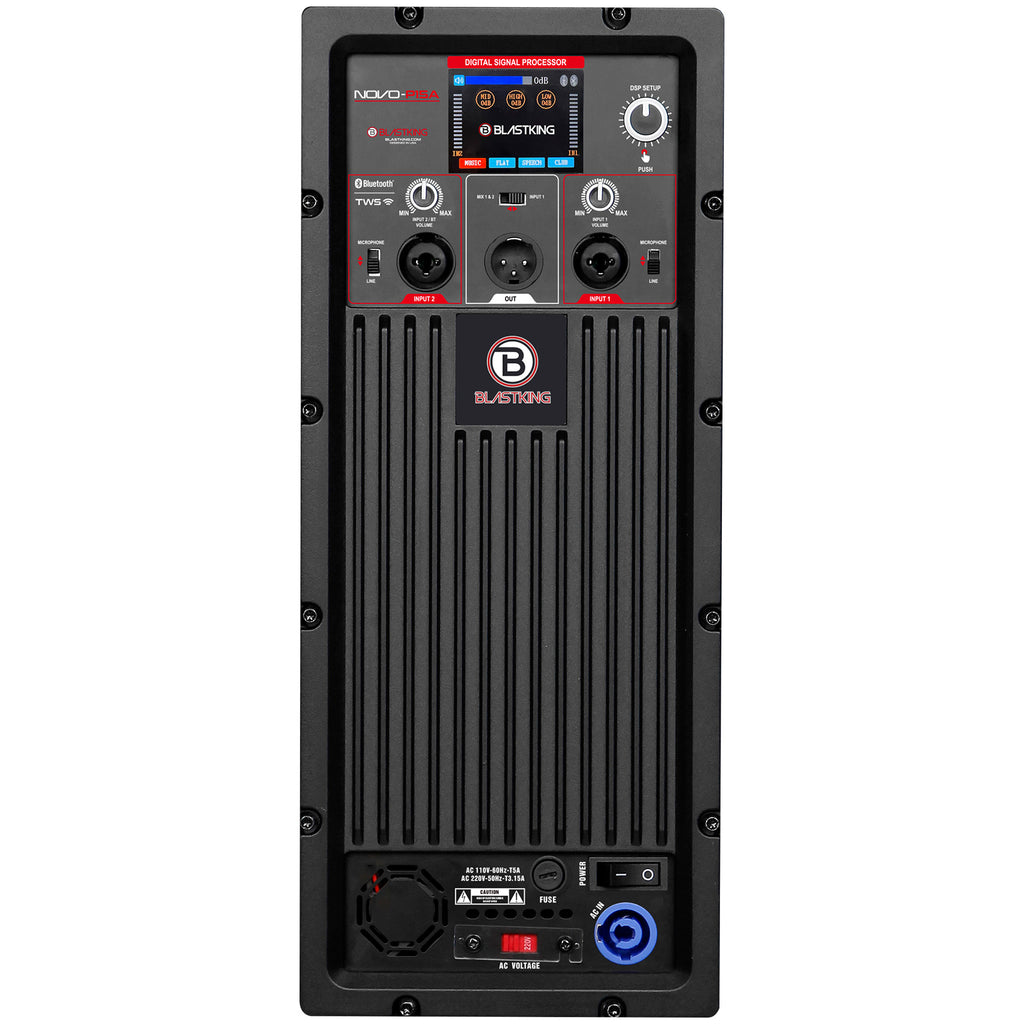

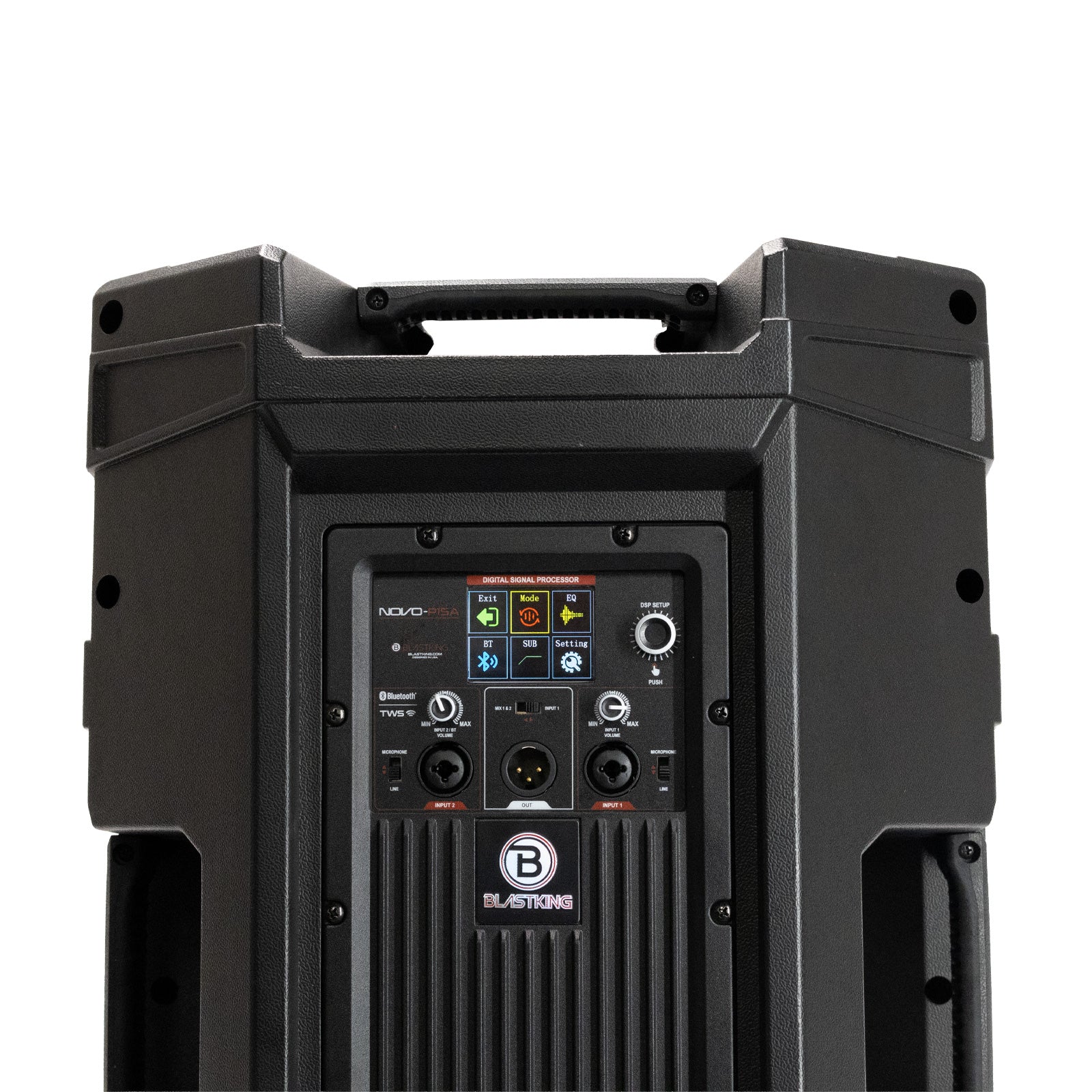

The updated rear panel features an integrated LCD digital signal processor controlled from a single rotary push knob. Select between Music, Flat, Speech, and Club DSP presets, or access additional DSP settings including adjustable Low, Mid, and High EQ, subwoofer mode, delay, noise gate, display brightness, LCD dimming, system reset, and system information.
Two XLR / 1/4-inch TRS combo inputs provide independent volume controls and dedicated MIC/LINE switches. INPUT 2 also controls the Bluetooth audio level when Bluetooth mode is active. The balanced XLR audio output includes a selectable routing switch, allowing you to send either a combined signal from INPUT 1 and INPUT 2 or INPUT 1 only to another powered speaker or compatible audio device.
Built-in Bluetooth® and TWS make wireless playback and stereo speaker pairing easy. The DSP also includes a dedicated SUB Mode with selectable 80 Hz, 100 Hz, 120 Hz, and 150 Hz high-pass filter settings when integrating the NOVO-P15A with an active subwoofer.
Features
- 15-inch 2-way active professional loudspeaker
- 1200W Class-D bi-amplifier
- 15-inch low-frequency transducer with 3-inch voice coil, 4 Ohm
- 1.75-inch (44 mm) high-frequency transducer, 8 Ohm
- Integrated LCD digital signal processor
- 4 DSP presets: Music, Flat, Speech and Club
- Adjustable Low, Mid and High EQ
- Bluetooth® wireless audio
- TWS (True Wireless Stereo)
- Bluetooth name: NOVO
- SUB Mode with selectable 80 Hz, 100 Hz, 120 Hz and 150 Hz high-pass filters
- DSP delay adjustment
- DSP noise gate
- Adjustable DSP display brightness
- Automatic LCD dimming option
- DSP factory reset and system information functions
- 2 XLR / 1/4-inch TRS combo inputs
- Independent MIC/LINE selector for each input
- Independent INPUT 1 and INPUT 2 volume controls
- INPUT 2 / Bluetooth volume control
- Balanced XLR audio output
- Selectable XLR output routing: MIX 1 & 2 or INPUT 1
- Three handles for easy transport
- 45° floor monitor angle
- 110V / 220V AC voltage selector
- Powercon AC input
Technical Specifications
- Model: NOVO-P15A
- Type: 15-inch 2-Way Active Loudspeaker
- Frequency Response (+/-3 dB): 50 Hz – 20 kHz
- Frequency Range (-10 dB): 48 Hz – 20 kHz
- Maximum SPL: 134 dB
- Horizontal Coverage Angle: 60°
- Vertical Coverage Angle: 55°
- Floor Monitor Angle: 45°
- Amplifier: 1200W Class-D
- Amplifier Type: Class-D Bi-Amp
- Low-Frequency Transducer: 15-inch, 3-inch VC, 4 Ohm
- High-Frequency Transducer: 1.75-inch (44 mm), 8 Ohm
- Crossover Frequency: 2 kHz
- DSP: Integrated DSP Processor with 4 Adjustable Modes
- DSP Presets: Music / Flat / Speech / Club
- Bluetooth: Bluetooth® / TWS (True Wireless Stereo)
- Input Connectors: 2 XLR / 1/4-inch TRS Combo Jacks
- Output Connector: XLR
- Output Routing: MIX 1 & 2 / INPUT 1
- Enclosure: Plastic
- Handles: Three
- Power Supply: 110V / 220V, 50/60 Hz selectable
- AC Input: Powercon Connector
DSP Functions
- Mode Selection: Music, Flat, Speech or Club
- Equalizer: Adjustable Low, Mid and High frequencies
- Bluetooth: Bluetooth ON/OFF and TWS pairing
- SUB Mode: Selectable 80 Hz, 100 Hz, 120 Hz or 150 Hz high-pass filter
- Delay: Time delay adjustment for phase alignment when used with a subwoofer
- Noise Gate: Reduces background noise when the signal falls below the set threshold
- Brightness: DSP display brightness adjustment
- LCD DIM: Automatic screen dimming
- Reset: Restores DSP settings to factory defaults
- Info: Displays system software and DSP firmware information
Physical Specifications
Product
- Height: 27.5 in / 700 mm
- Width (Front): 17 in / 430 mm
- Width (Rear): 8.7 in / 220 mm
- Depth: 15.3 in / 390 mm
- Weight: 51 lbs / 23 kg
Package
- Height: 31 in / 787 mm
- Width: 20 in / 508 mm
- Depth: 18.5 in / 470 mm
- Weight: 58 lbs / 26.3 kg
UPC: 686811896010
