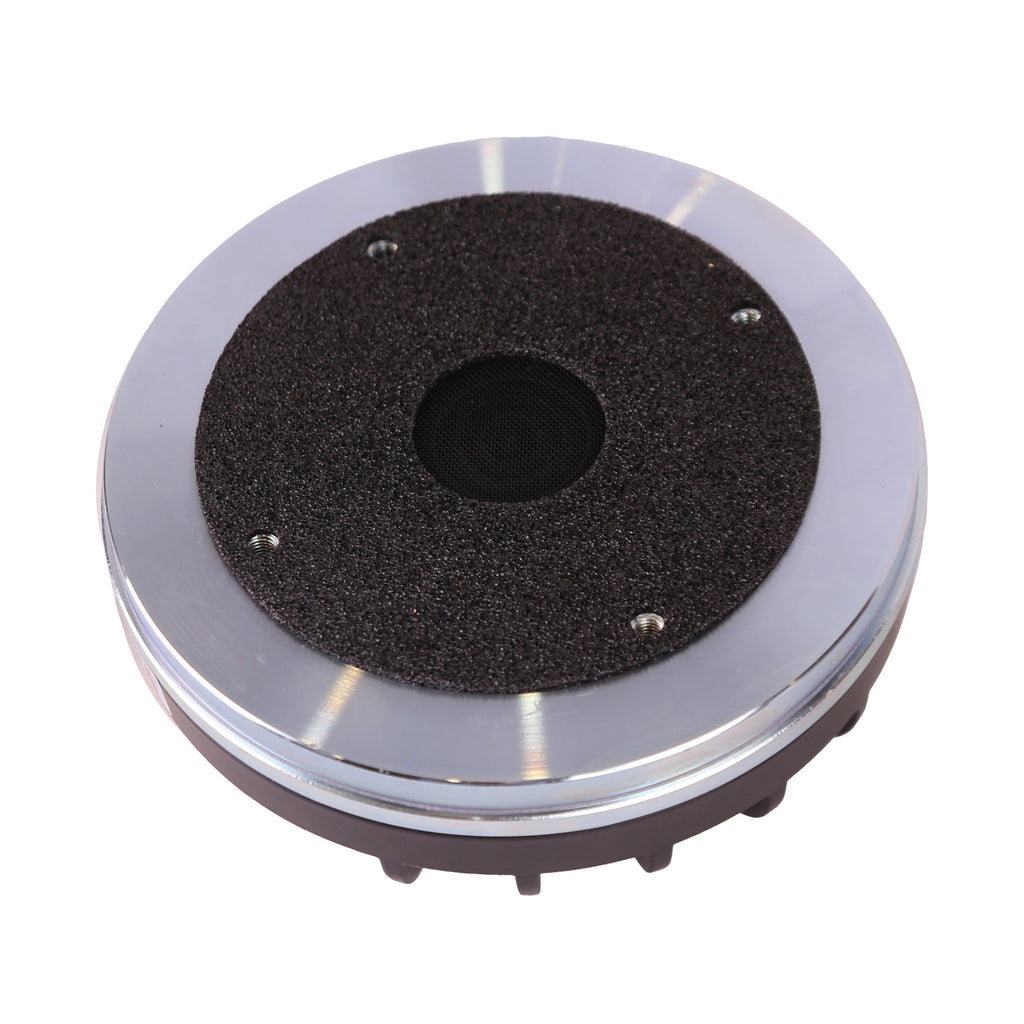

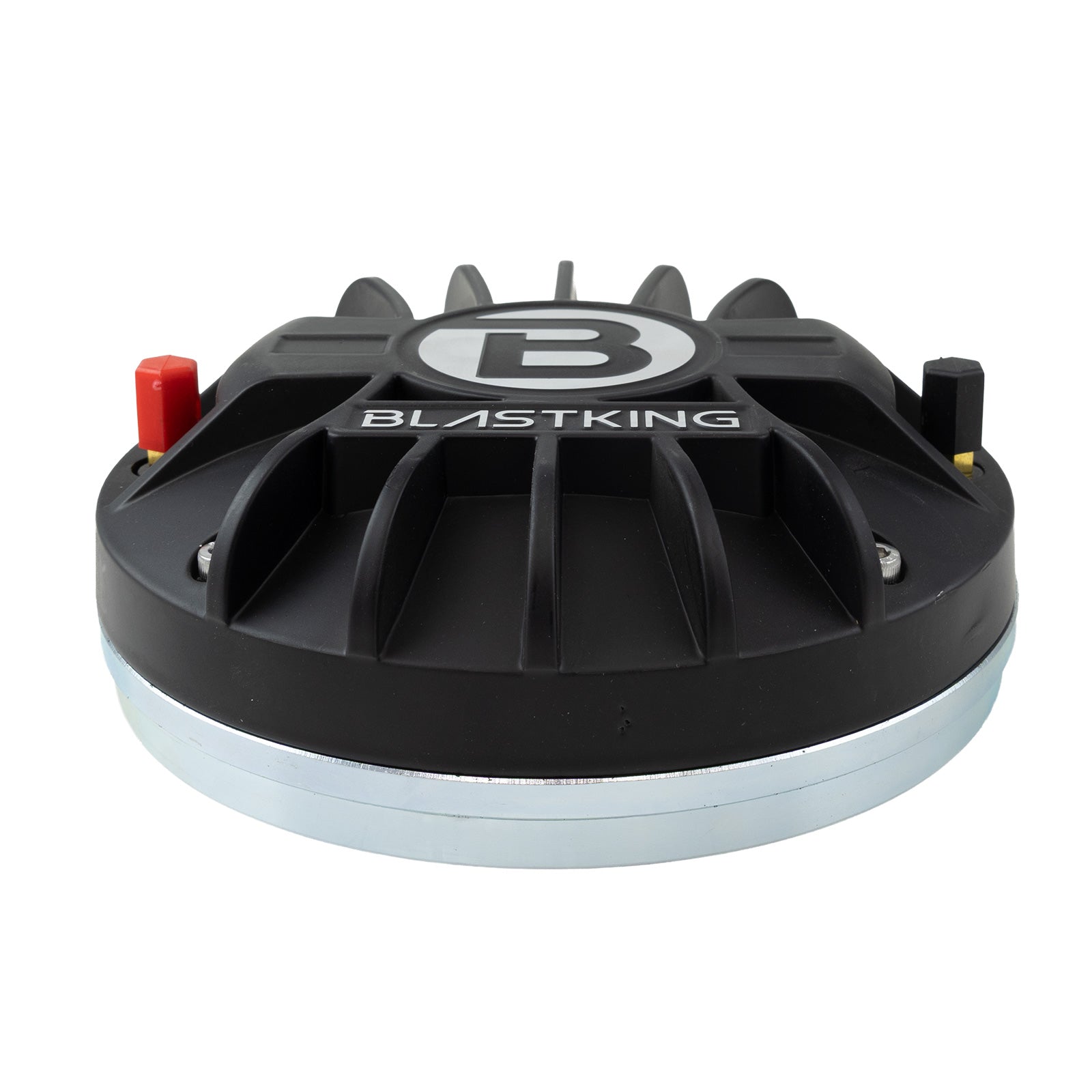

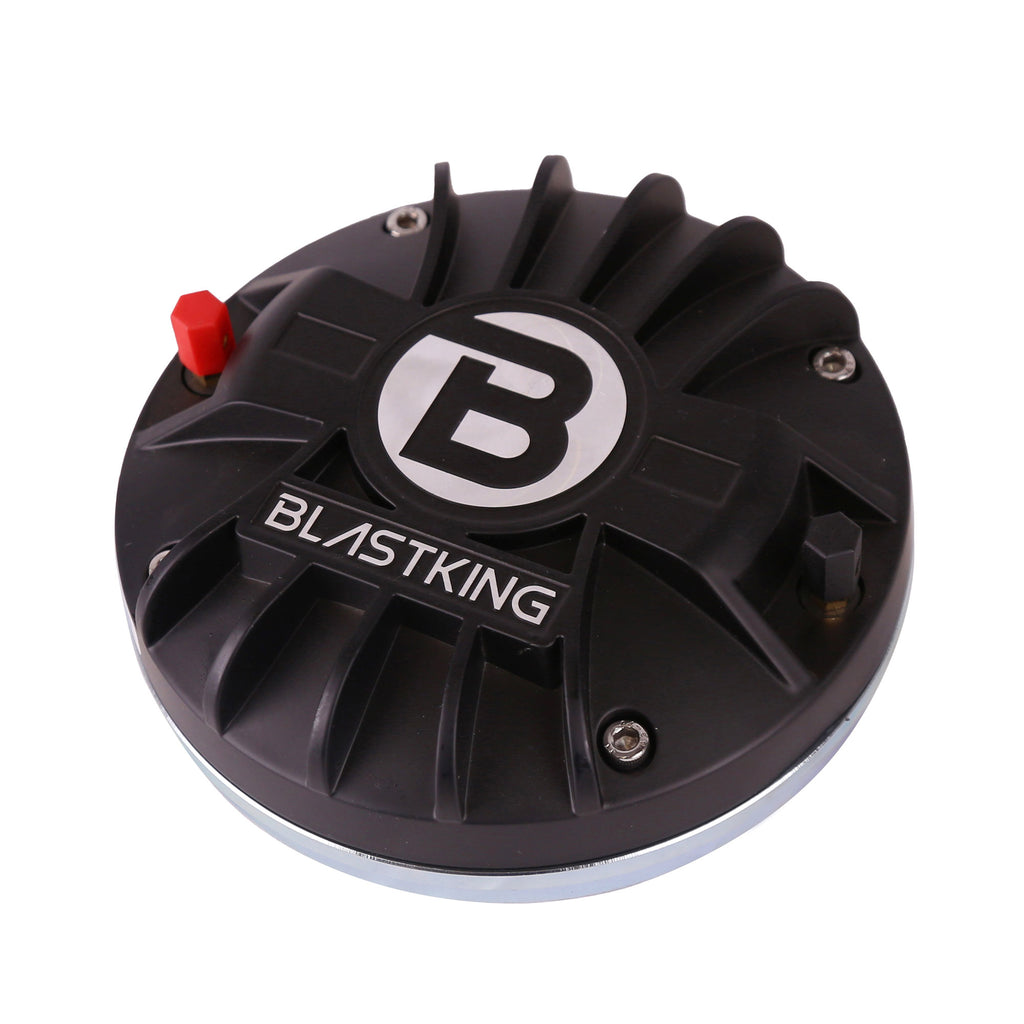

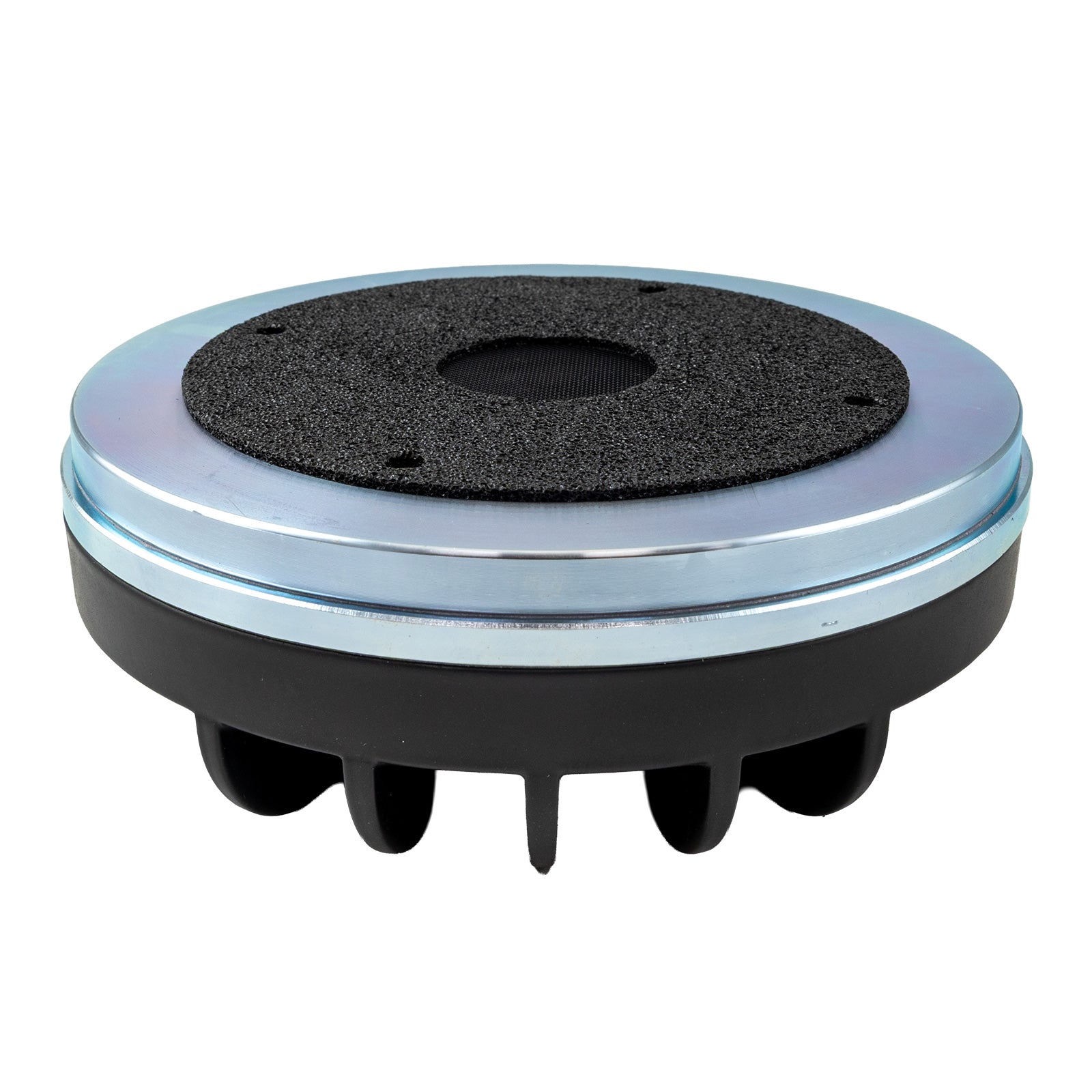

The Blastking PROFILE-TW4100NB is a 4 inch neodymium compression driver designed for professional high-frequency audio applications. It features a 35.56 mm (1.4 inch) throat diameter, 8 ohm rated impedance, 130 watts rated power handling, 260 watts program power, and 107 dB sensitivity (1W/1M) for efficient output in professional speaker systems.
Built for dependable performance, this model includes a 100 mm (3.94 inch) voice coil, titanium diaphragm, copper-clad aluminum flat wire, KAPTON voice former, and aluminum frame. The specified frequency range of 500 Hz to 16,000 Hz supports controlled high-frequency reproduction for demanding audio applications. It also uses push button spring terminals and mounts with 4 x M6 threaded holes on a 102 mm mounting PCD.
Features
-
4 inch neodymium compression driver
-
1.4 inch throat diameter
-
8 ohm rated impedance
-
130W rated power handling
-
260W program power
-
107 dB sensitivity (1W/1M)
-
100 mm / 3.94 inch voice coil
-
Titanium diaphragm
-
Copper-clad aluminum flat wire
-
KAPTON voice former
-
Aluminum frame
-
Push button spring terminals
Specs
-
Model: PROFILE-TW4100NB
-
Description: 4 inch neodymium compression driver
-
Throat Diameter: 35.56 mm / 1.4 inch
-
Rated Impedance: 8 ohm
-
Rated Power Handling: 130 W
-
Program Power: 260 W
-
Sensitivity (1W/1M): 107 dB
-
Frequency Range: 500 Hz – 16,000 Hz
-
Voice Coil Diameter: 100 mm / 3.94 inch
-
Voice Coil Material: Copper-clad aluminum flat wire
-
Voice Former Material: KAPTON
-
Diaphragm Material: Titanium
-
Frame Material: Aluminum
-
Terminals: Push button spring terminals
-
Mounting Holes: 4 x M6 threaded holes
-
Mounting PCD: 102 mm
-
Overall Dimensions: 160 x 160 x 70 mm
-
Net Weight: 2.6 kg
-
Shipping Weight: 2.7 kg
View PROFILE-TW4100NB Datasheet
