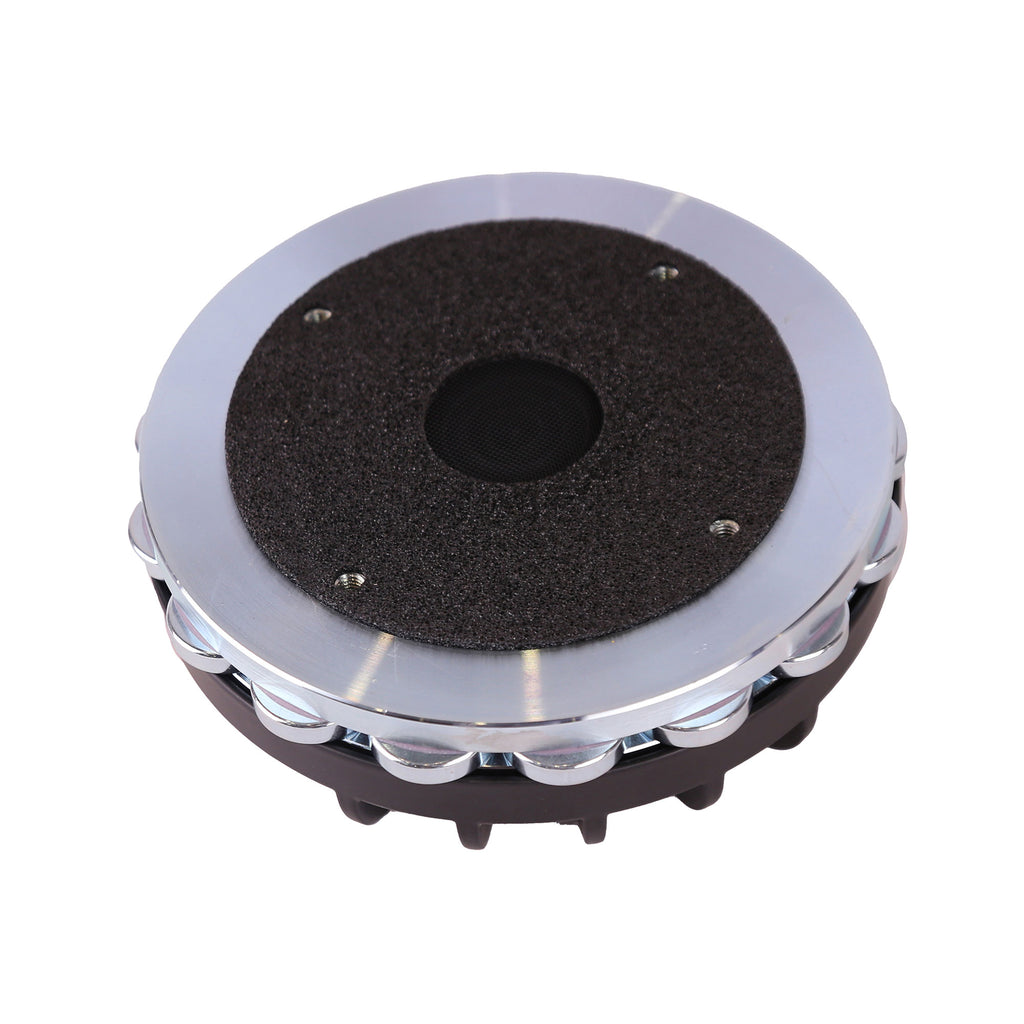

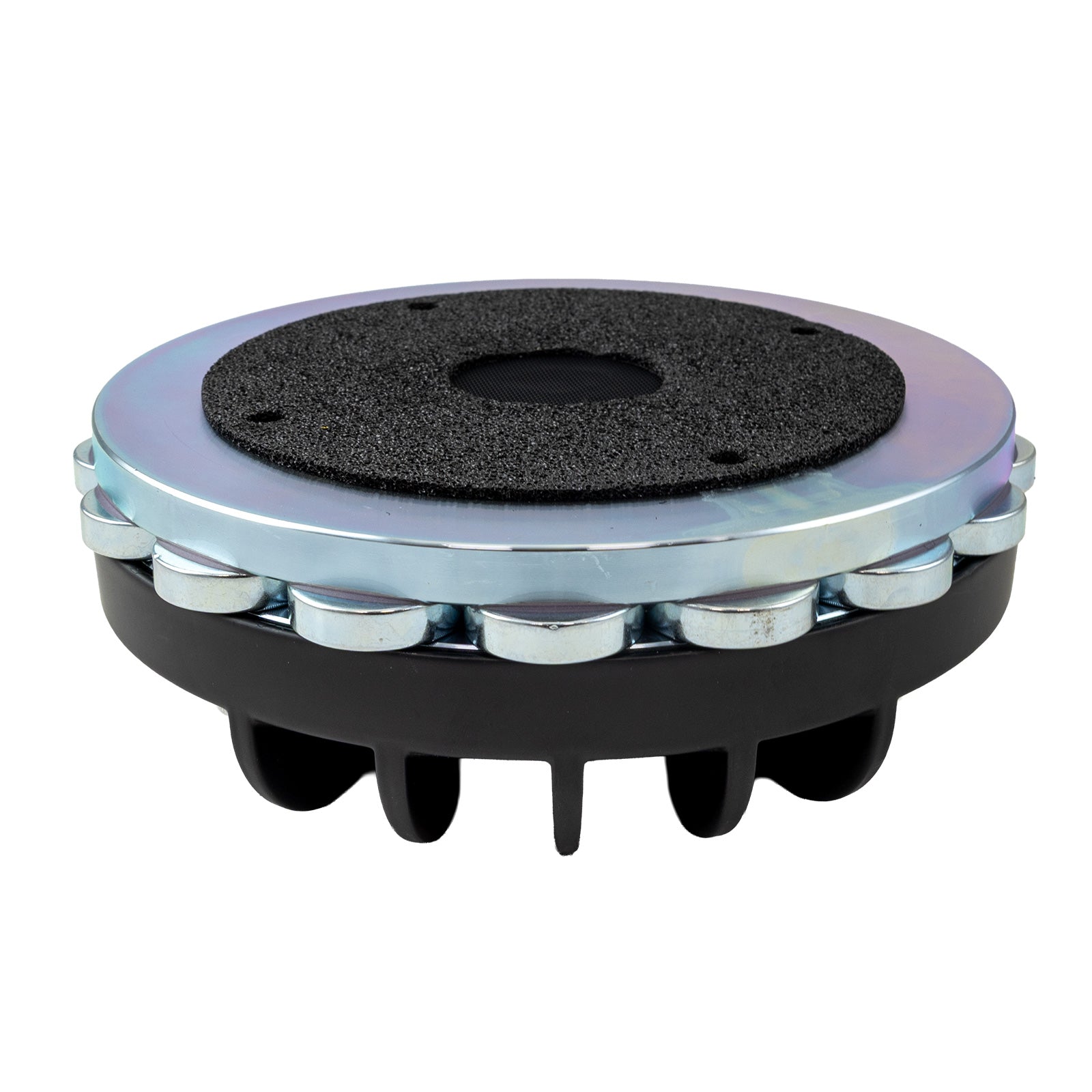

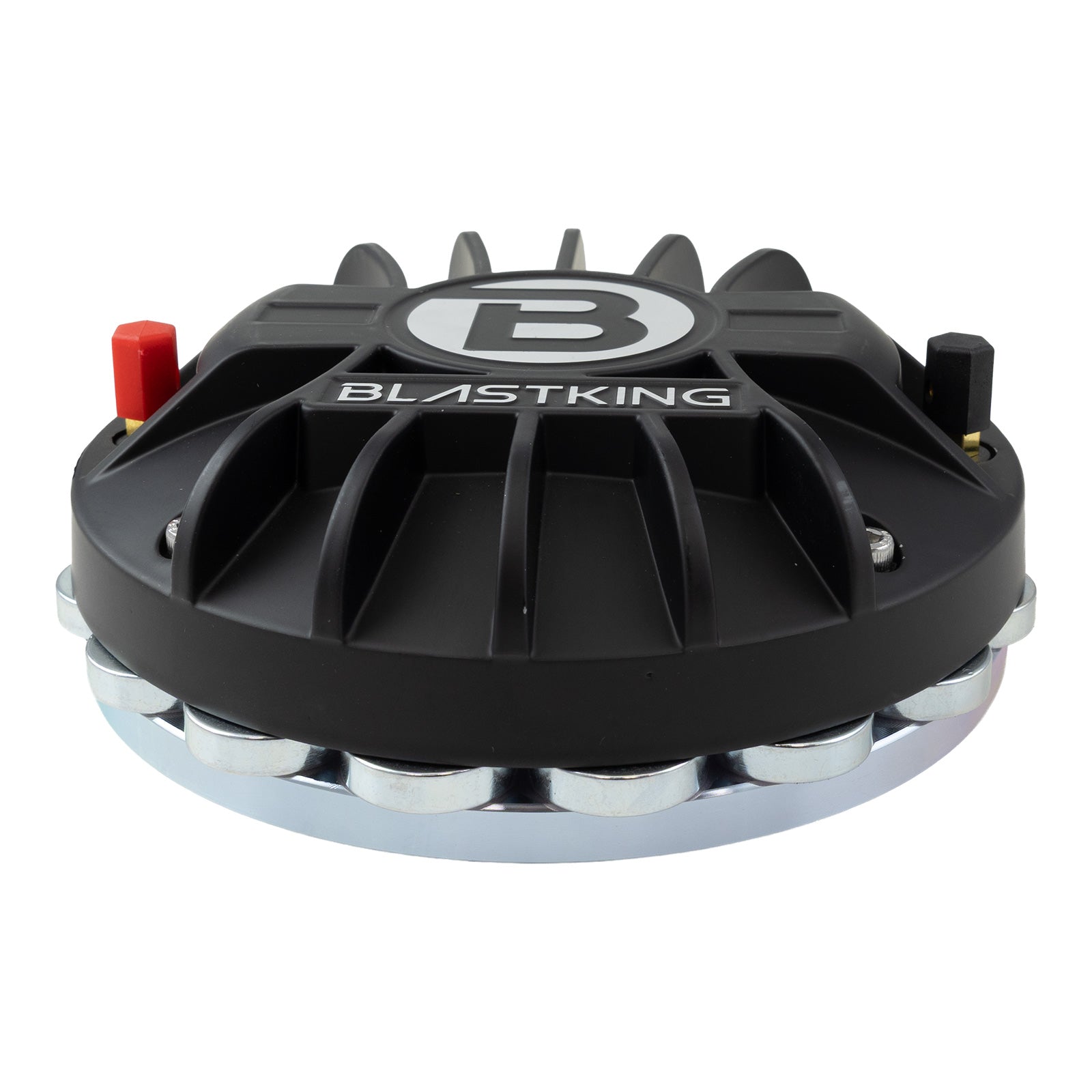

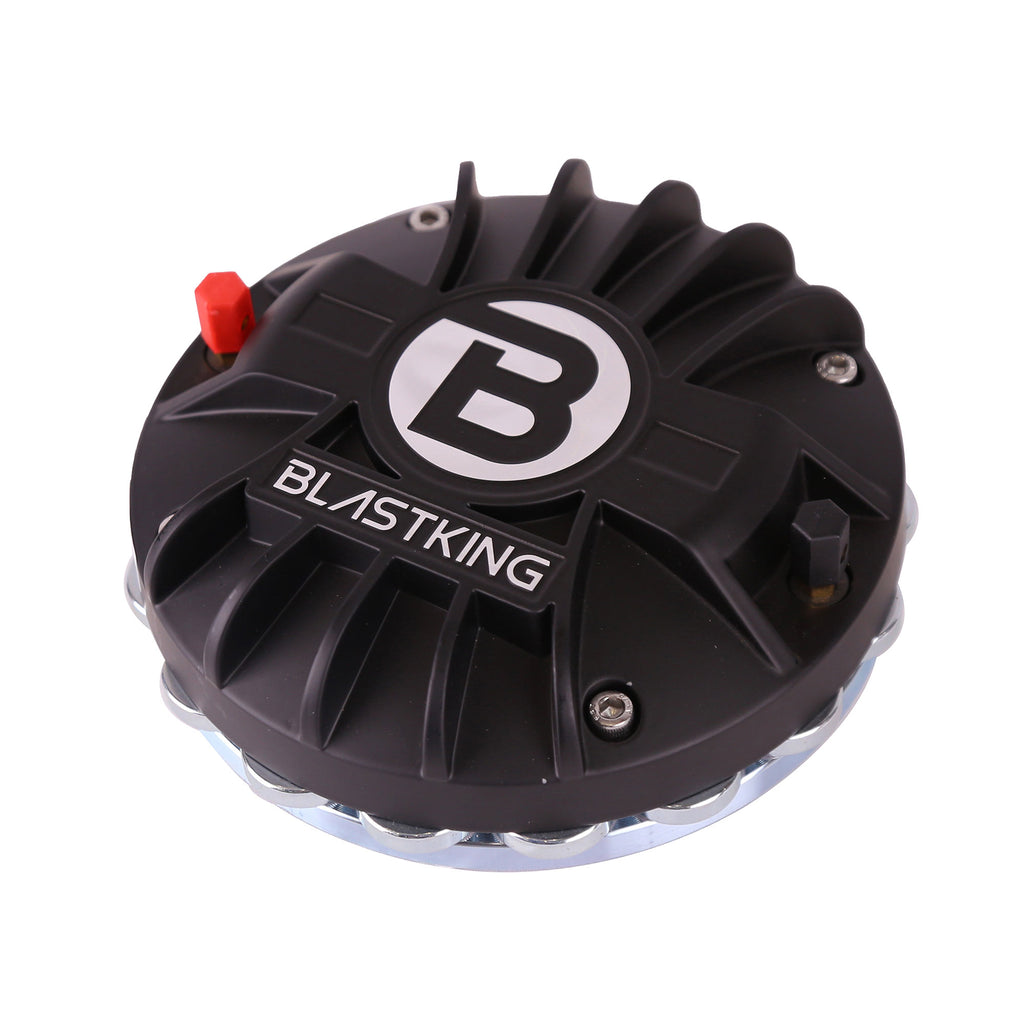

The Blastking PROFILE-TW4100N is a 4 inch neodymium compression driver designed for professional high-frequency audio applications. It features a 1.4 inch throat diameter, 8 ohm impedance, 120 watts RMS power handling, 240 watts program power, and 106 dB sensitivity (1W/1M) for efficient output in professional speaker systems.
Built with a 100 mm (3.94 inch) voice coil, titanium diaphragm, copper-clad aluminum flat wire, KAPTON voice former, and aluminum body construction, the PROFILE-TW4100N is specified for a frequency response of 500 Hz to 16 kHz. It also includes push button spring terminals and mounts with 4 x M6 threaded holes on a 102 mm mounting PCD, providing practical installation details for professional audio applications.
Features
-
4 inch neodymium compression driver
-
1.4 inch throat diameter
-
8 ohm impedance
-
120W RMS power handling
-
240W program power
-
106 dB sensitivity (1W/1M)
-
100 mm (3.94 inch) voice coil
-
Titanium diaphragm
-
Copper-clad aluminum flat wire
-
KAPTON voice former
-
Aluminum body construction
-
Push button spring terminals
Specs
-
Model: PROFILE-TW4100N
-
Description: 4 inch neodymium compression driver
-
Throat Diameter: 35.56 mm / 1.4 inch
-
Rated Impedance: 8 ohm
-
Rated Power Handling: 120 Watts
-
Program Power: 240 Watts
-
Sensitivity: 106 dB (1W/1M)
-
Frequency Range / Response: 500 Hz - 16000 Hz / 500 Hz - 16 kHz
-
Magnet: 363.8 g / 12.83 oz
-
Magnet Dimensions: 24.5 x 6 mm / 1.0 x 0.2 inch (17 pcs)
-
Minimum Impedance: 6.5 ohm
-
Voice Coil Diameter: 100 mm / 3.94 inch
-
Voice Coil Material: Copper-Clad Aluminum Flat Wire
-
Voice Coil Winding Depth: 3 mm / 0.1 inch
-
Voice Former Material: KAPTON
-
Diaphragm Material: Titanium
-
Frame Material: Aluminum
-
Connector Type: Push Button Spring Terminals
-
Fitting: 4 x M6 threaded holes
-
Mounting PCD: 102 mm
-
Net Weight: 2.6 kg / 5.73 lbs
-
Shipping Weight: 2.7 kg / 5.95 lbs
-
Dimensions (W x D x H): 160 x 160 x 70 mm / 6.3 x 6.3 x 2.8 inch
View PROFILE-TW4100N Datasheet
