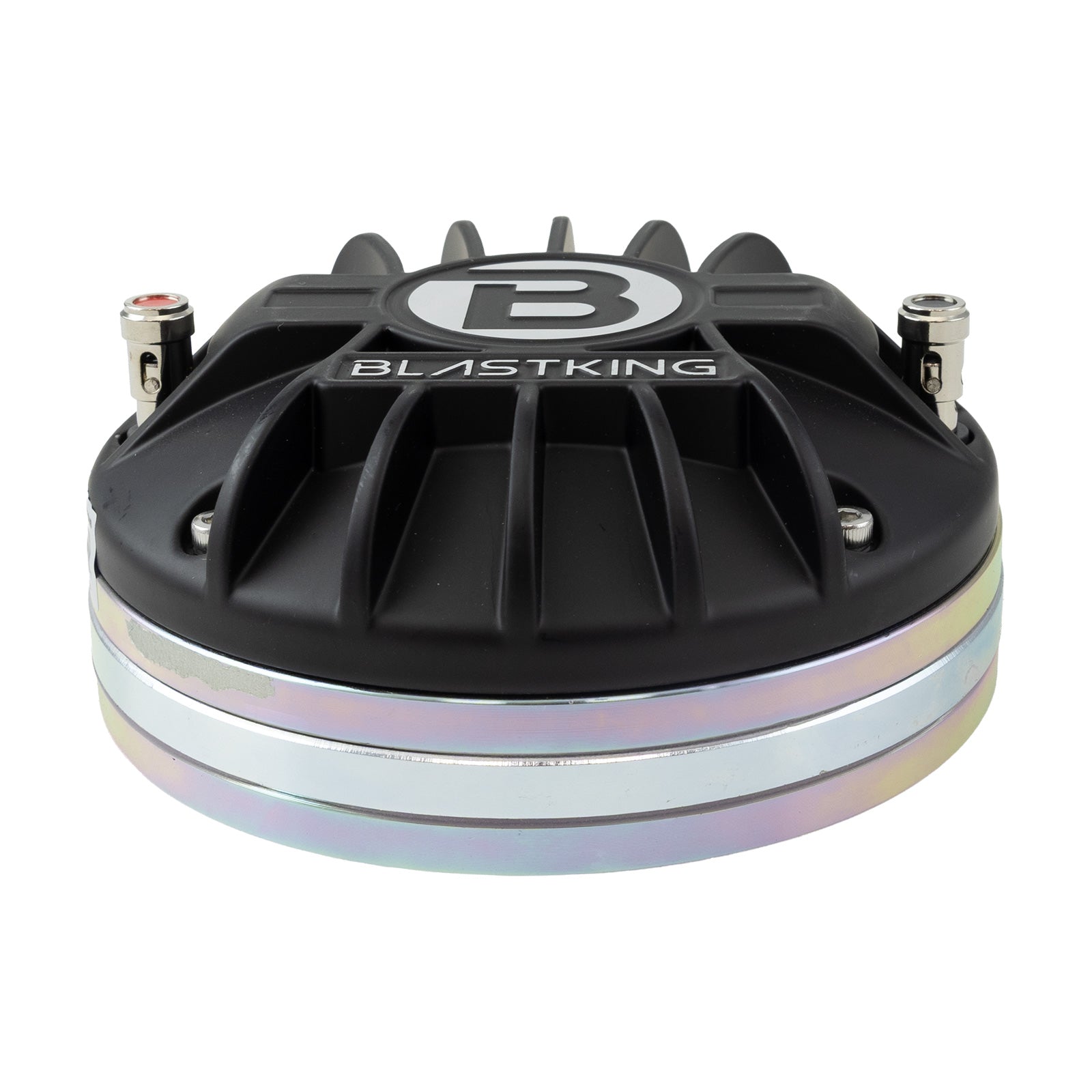

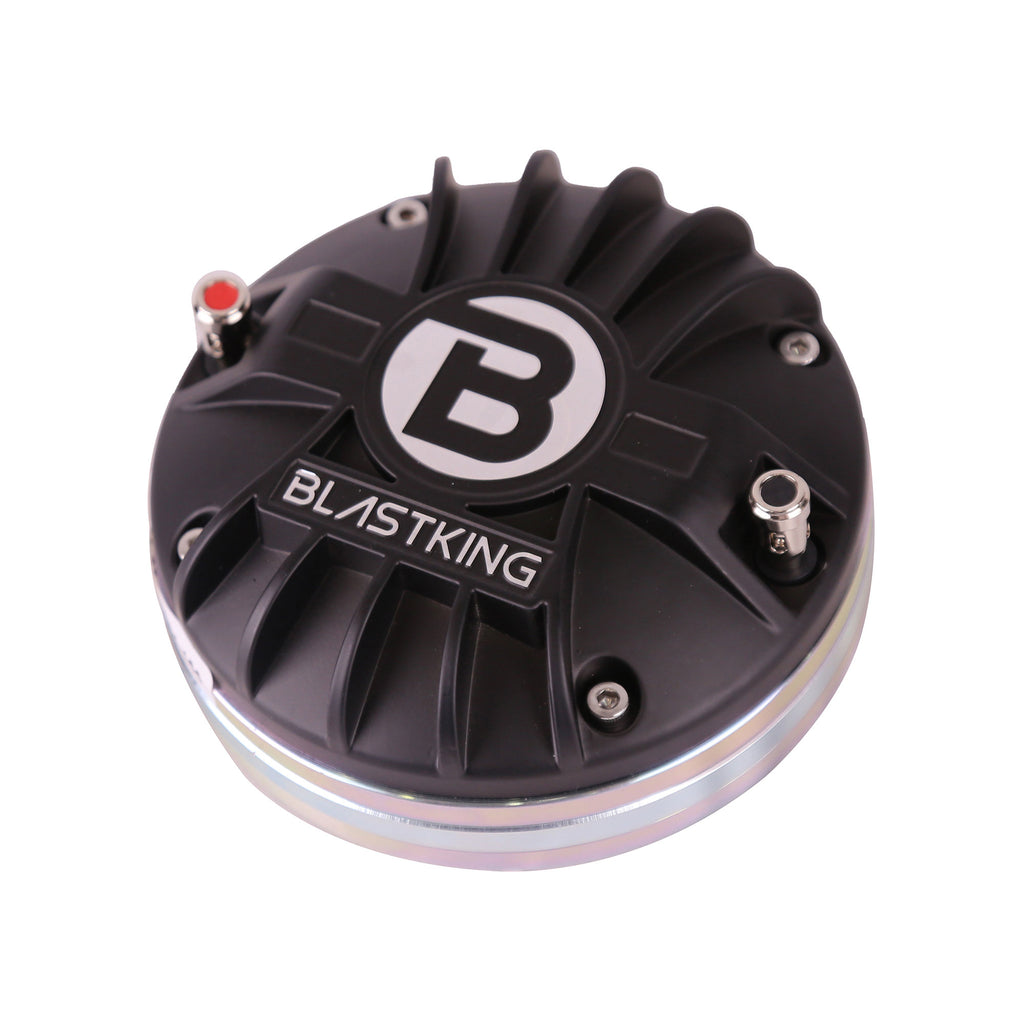

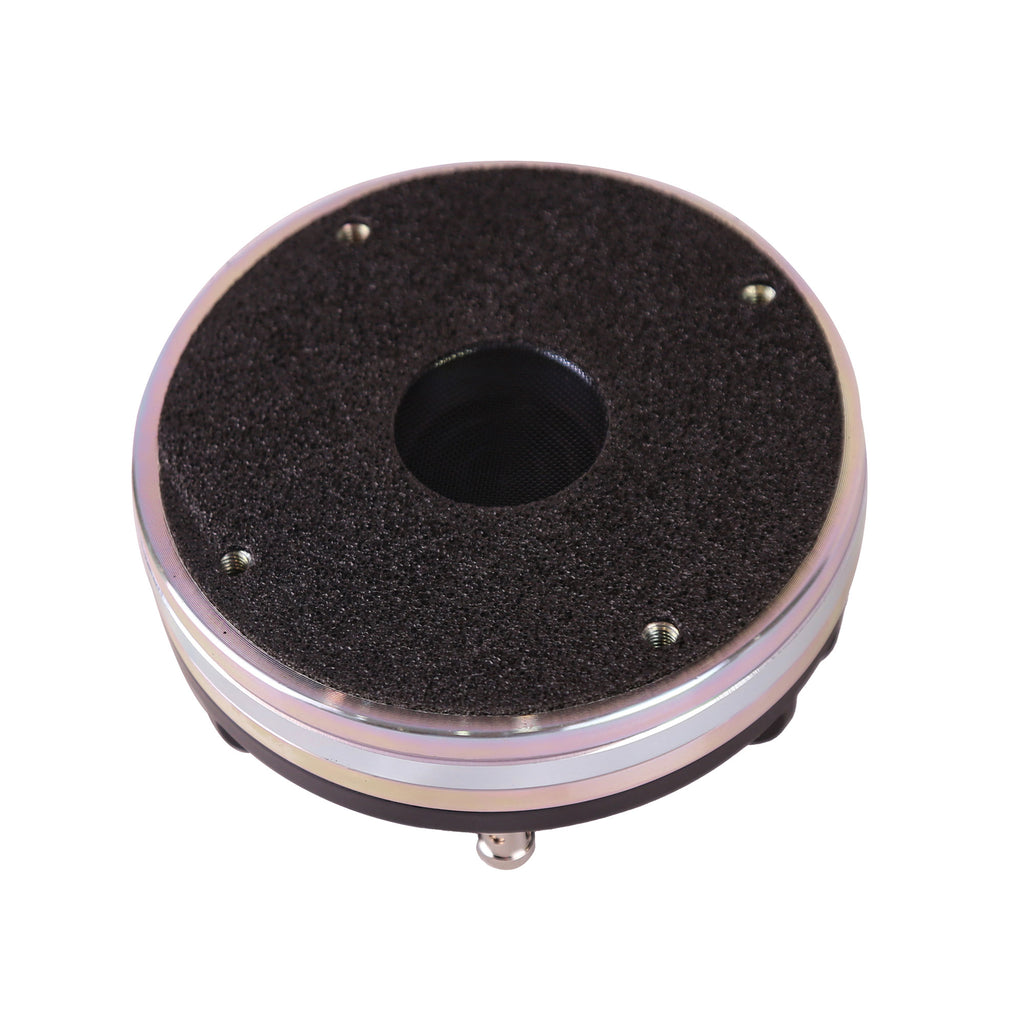

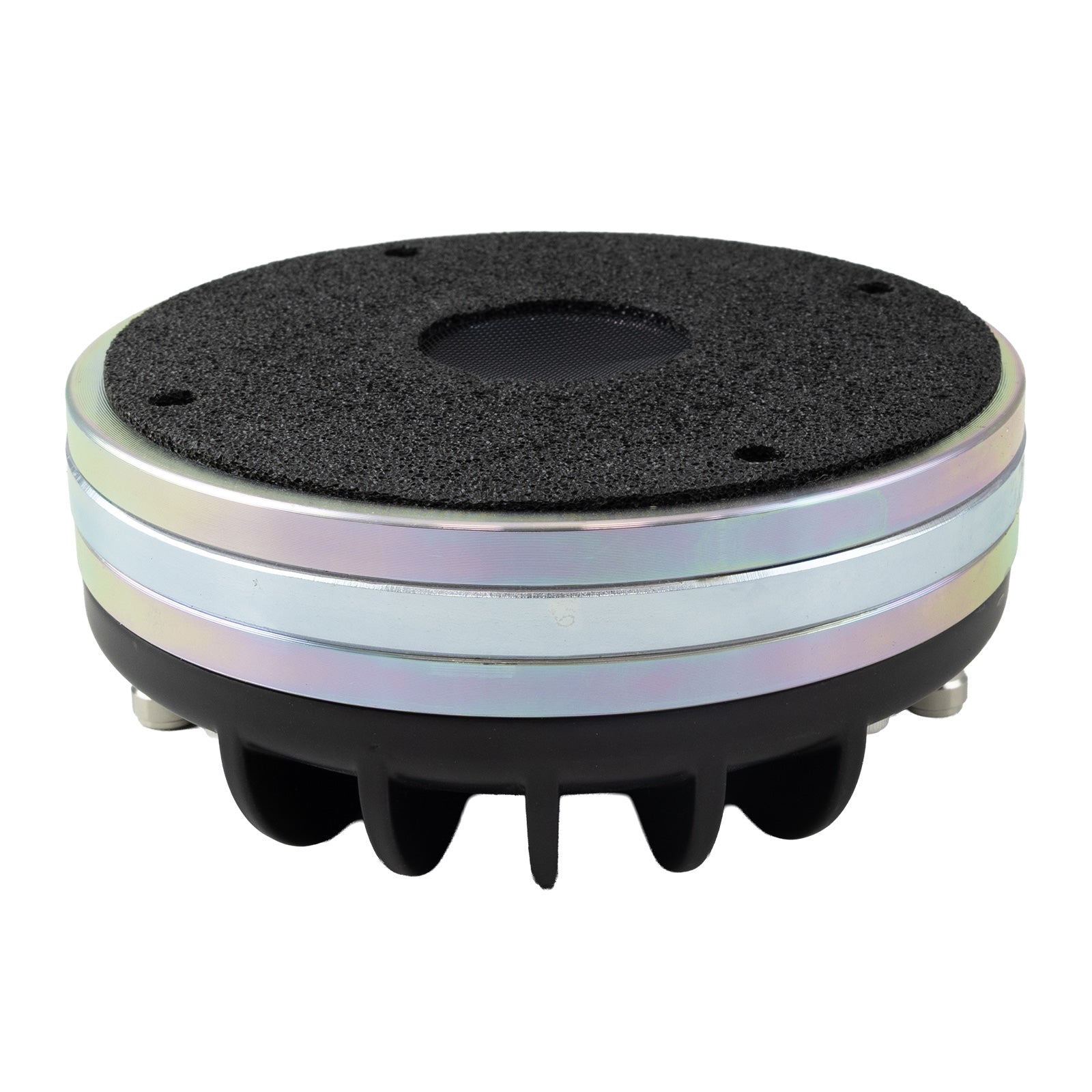

Blastking PROFILE-TW375NB 3 Inch Boosted Neodymium Compression Driver 1.4 Inch Throat 8 Ohm 220W Program

The Blastking PROFILE-TW375NB is a 3 inch boosted neodymium compression driver designed for professional high-frequency audio applications. Built for boosted performance, it features a 1.4 inch throat diameter, 8 ohm impedance, 110 watts RMS power handling, 220 watts program power, and 108 dB sensitivity (1W/1M) for efficient output in professional speaker systems.

This model is built with a 75 mm (2.95 inch) voice coil, PEN diaphragm, copper-clad aluminum flat wire, KAPTON voice former, and aluminum body construction. Its specified frequency response of 500 Hz to 16 kHz supports controlled high-frequency reproduction, while the push button spring terminals and 4 x M6 threaded holes with 102 mm mounting PCD provide practical installation details for professional audio applications.

Features

• 3 inch boosted neodymium compression driver

• Boosted performance

• 1.4 inch throat diameter

• 8 ohm impedance

• 110W RMS power handling

• 220W program power

• 108 dB sensitivity (1W/1M)

• 75 mm (2.95 inch) voice coil

• PEN diaphragm

• Copper-clad aluminum flat wire

• KAPTON voice former

• Aluminum body construction

• Push button spring terminals

Specs

• Model: PROFILE-TW375NB

• Description: 3 inch boosted neodymium compression driver

• Throat Diameter: 35.56 mm / 1.4 inch

• Rated Impedance: 8 ohm

• Rated Power Handling: 110 Watts

• Program Power: 220 Watts

• Sensitivity: 108 dB (1W/1M)

• Frequency Range / Response: 500 Hz - 16000 Hz / 500 Hz - 16 kHz

• Magnet: 381 g / 13.43 oz

• Magnet Dimensions: 124 x 86 x 8 mm / 4.9 x 3.4 x 0.3 inch

• Minimum Impedance: 6.3 ohm

• Voice Coil Diameter: 75 mm / 2.95 inch

• Voice Coil Material: Copper-Clad Aluminum Flat Wire

• Voice Coil Winding Depth: 3 mm / 0.1 inch

• Voice Former Material: KAPTON

• Diaphragm Material: PEN

• Frame Material: Aluminum

• Connector Type: Push Button Spring Terminals

• Fitting: 4 x M6 threaded holes

• Mounting PCD: 102 mm

• Net Weight: 2 kg / 4.41 lbs

• Shipping Weight: 2.1 kg / 4.63 lbs

• Dimensions (W x D x H): 130 x 130 x 68 mm / 5.1 x 5.1 x 2.7 inch

View PROFILE-TW375NB Datasheet
