- Freq. Response (-3 dB): 55Hz-20KHz
- Frequency range (-10dB): 48Hz-20KHz
- Maximum SPL peak: 138dB (Peak)
- Horizontal coverage angle: 90°
- Vertical coverage angle: 75°
- Monitor angle: 50°
- Power handling: 1200 Watts
- Low frequency Transducer: 12”
- High frequency Driver: 2”
- Crossover Frequency: 2KHz
- Power amplifier type: Class-D Bi-Amp
- Integrated DSP processor with 5-modes

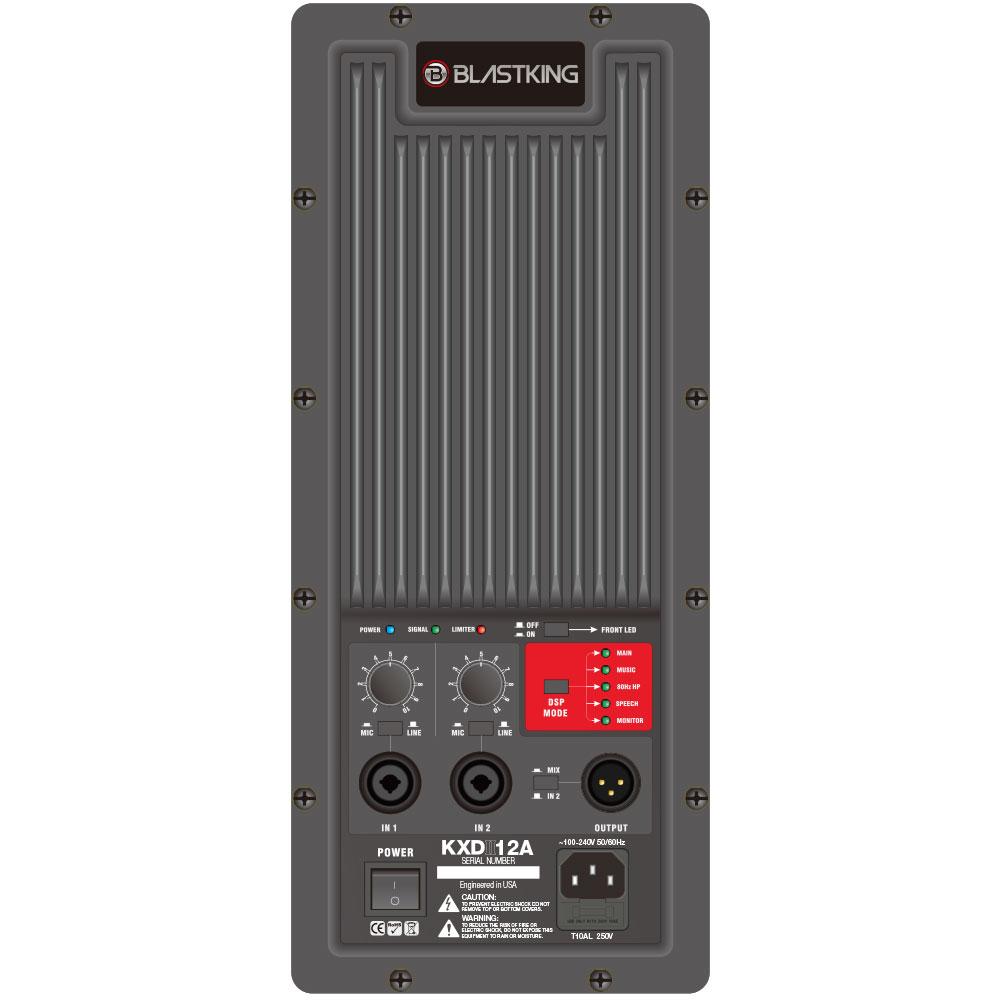

- Input connectors: XLR or 1/4”Jack
- Output connectors: XLR
- Enclosure: Plywood

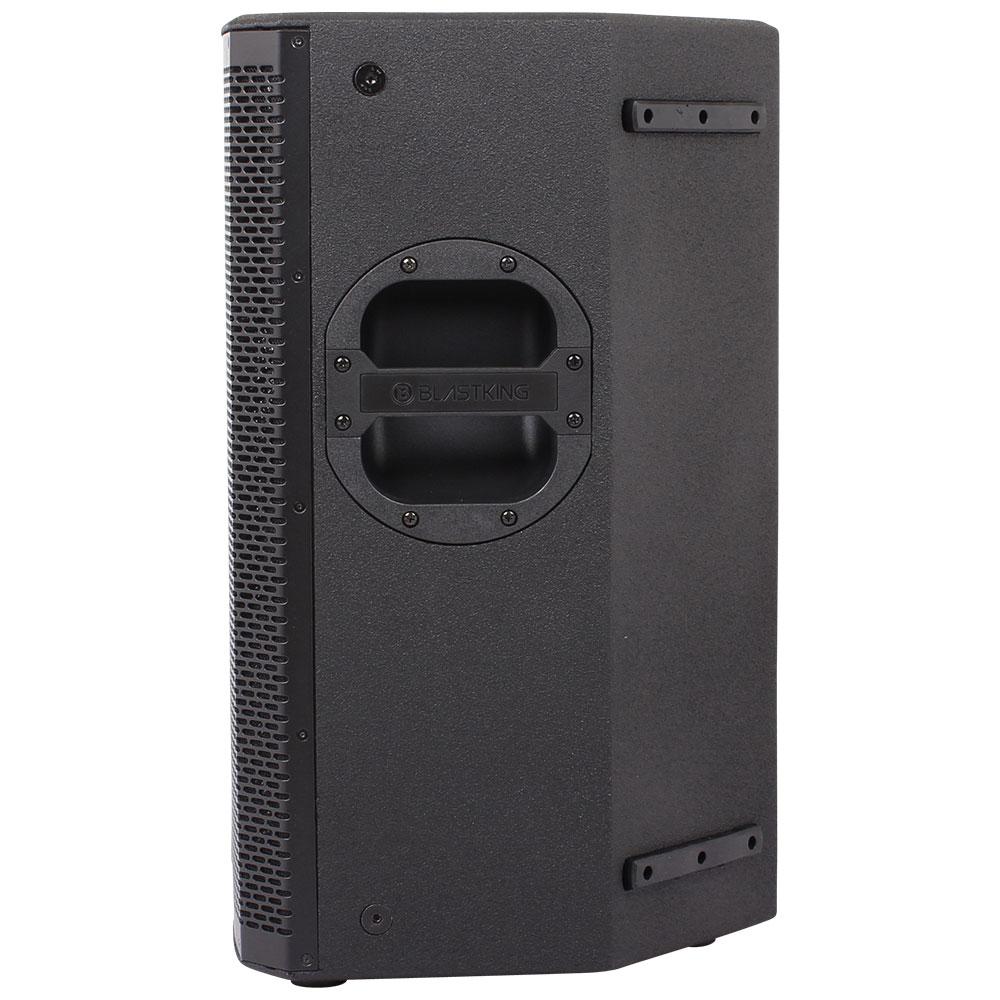

- Includes side handles for easy transport
- 12 Fly points for rigging the loudspeaker
- Can be used as a stage monitor
- Power supply 110-240V 50/60Hz
Physical Specifications
Product
Height: 24.40”/ 620 mm
Width (front): 14.17”/ 360 mm
Width (rear): 8.26”/ 210 mm
Depth: 14.56”/ 370 mm
Weight: 50.7 Lbs / 23 Kg
Package
Height: 27.36”/ 695 mm
Width: 17.32”/ 440 mm
Depth: 16.73”/ 425 mm
Weight: 55.1 Lbs / 25 Kg
UPC: 686811892722
